Sooo.. you ask, and we do our best to accommodate! I may not be proficient with a screw driver, but Neil's enlisted master weapon-smith Chris Wolfe and his Make Hack Void fellas to do a lil surgery on the upcoming Rayven CS-18 blaster. Here are some exclusive pics of a cracked open Rayven to give you all a first look at what's inside.
Means nothing to me of course:) Lots more pics after the jump. (Thanks fellas!)
If you've got any questions leave them here and I'll answer them all for you tomorrow a.m.(Australian time)
ReplyDeleteNeil
Canberra & Southern NSW Dart Tag (Nerf Wars, HvZ)
How did you fit 16.8 V into such a small battery compartment? What kind of batteries are you using?
ReplyDeletewhen does this come out?
ReplyDeleteI'm just wondering how the darts get pushed into the flywheels. Servo motor or something?
ReplyDeleteThat barrel looks like it'd be losing you range, especially with a long extension on it too.
ReplyDeleteGreat photo lay out! I was wondering how the darts were fed into the wheels. Is the feeder electric opposed to the barricade's manual?
ReplyDeleteTrustfire batteries, not one of those lipo stick types.
ReplyDeleteTrustFire batteries, likely. Each AA TrustFire battery can supply 3.7 Volts.
ReplyDeletewhat prevents darts from pop out the top of the clip?
ReplyDeleteare those things on the motors resistors or diodes?
ReplyDelete@Mou Cow, I'm sure Neil will correct me if I'm wrong, but I believe they're using 4 of the 14500s. They're the same size as AA batteries, so they'd just drop in without any modding necessary.
ReplyDelete@Neil, have you had any experiences where having the motors running too long at the increased voltage has caused them to automatically shut off? I know the Barricade has a thermistor in its circuit that would temporarily disable the blaster if you ran higher voltages through it for too long at a time (I believe people were saying it would kick in after about a minute of sustained motor use). Seeing as you only have the two, I wouldn't ask you to sacrifice one to stress tests, but I (and probably many others) are interested in how the 14500s will affect the longevity of the blaster.
just like I thought it would be but not as complicated. I'm a new modder and don't understand the picks but understand how it works.
ReplyDeleteHm, I'm not sure if I'll bother relocating the pressure switch to be trigger-activated on this one. It was necessary on the Barricade, since it was in an awkward spot, but the design of the pressure switch on this one is almost exactly the same as what the standard mod is on the Barricade and it's right next to the trigger.
ReplyDeletecan you please tell me how you got it to 14 volts.
ReplyDeletecause when i get my rayven i am planning to voltage mod it to 14 volts
I take from the pictures that Neil tapped the batteries from the clip to amp it up to 12V with 1.5V Batteries. But that'll not work for 14V... I guess I'll have to get those expensive 3,7V Trustfires (and a charging device)eventually...:(

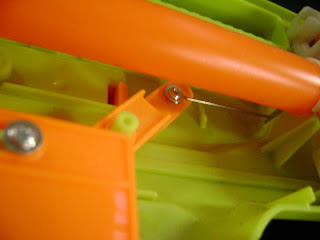

ReplyDeleteAs for how the dart pusher works: In one of the pictures you can see a small metal wire that connects to a lever. Pull the trigger makes the lever turn, which pulls the wire, which in turn pulls the dart pusher.
Ok so from the top:
ReplyDelete-The batteries are trust fire 3.7v each in the AA package.
-(^^^ Correct Anon)The dart loading is done manually via the lever connected to the wire that runs the leanth of the blaster. This is attached to the dart pusher.
-There is a flywheel trigger lock that prevents the main trigger being depressed unless its spun up, a clip lock and a jam door lock.
-There are 4 resistors on the motors and a diode on the power line.
Cheers,
So it's not full auto then?
ReplyDeleteI don't think it's ever been thought to be full auto. From day dot we expected it to be exactly what it is- a rear fed flywheel semi auto clip based blaster.
ReplyDeleteany chance you could avoid the streamline's accuracy problem by modding it to use whistlers?
ReplyDeleteJust a couple questions...
ReplyDeleteWhat is the dart pusher mechanism, and how is it connected to the trigger? I cannot see any physical pieces connecting them in these pictures, which worries me, as I see, instead, wires connecting to that area. Granted, logic says that they are probably for the pressure switch for the jam door (an electric trigger on a semi-auto blaster would be a complete waste of money), but I can't help but feel uneasy...
What type of blue LEDs does the FT clip contain? In this picture, it looks like a bar, but that would be uncharacteristically expensive for Nerf... Is it a few normal chips behind a diffuser panel?
Finally, are the flywheels smooth-edged like the Nitron's, or toothed like the Barricade's? As I stated in another post, I find the design of the latter to be far noisier. And what is the purpose of the patterns on the sides? Do the flywheels have actual weights in them now?
Thanks! I'll buy two anyway when they come out regardless, but it's nice to know these things ahead of time. ;)
Thanks Chris for answering those questions - I was getting to it (honest!)
ReplyDeleteA little more details on the batteries:
I was using 4 x 'Ultrafire' 14500 AA 3.7v 900 mAh Lithium Rechargeable batteries. Each battery is 4.2 volts fully charged. The batteries themselves and charger are quite reasonably priced. I sourced mine from a reputable Hong Kong seller. I've had problems with the 'Trustfires' but I may have got a bad batch or they were rip off copies.
I cant see the internal barrel effecting the range too much. Its only 5 inches long or so, and if you were to remove the front piece you'd have to glue the barrel into the flywheel assembly - it slides in but the front piece keeps it in place with a couple of screws.
Also, I ran it pretty much all afternoon at 16 volts and at no stage did the motors shut off. However I wouldnt recommend running it at that voltage all the time. Me and the crew are still fiddling about to find the best voltage level. It may even be a case of swappig out motors for something that will take a bit more juice.
Would you mind posting the dimensions of the motors?
ReplyDeleteCheers,
Brunius
again I'd like to ask what prevents darts from popping out the top? if you have old shrunken darts they sometimes pop out the top of the clip in most clip blasters part of the breech holds down darts, what holds down darts in this because I don't see anything, maybe a picture with the clip inserted might help
ReplyDeleteBluefire, there is a small metallic bar connecting the trigger and dart pusher.
ReplyDelete@Iknowmy3tables, There is nothing holding darts into the clip. What you see in the pics is what you get :)
ReplyDelete@Brunius, 30mm x 20mm x 15mm
You have to do test to see if the barrel helps the flywheel system at all..
ReplyDeleteAs soon as we know if barrels help flywheel blasters at all at high voltages we can start spending big MONEY on crazie motors to make blasters that can fire 200yardS!
Plz do barrel related testes.. remove the barrel.. put the motors in a barricade... etc.. mabye get hold of a Photom storm blaster for china and chop off its barrel as another test option for clip fed barreless blaster if u cant be bothered using a barricade.
WE must know if barrels are good or bad for flywheel. only thing that should be testing with this Rayven.. its its only unique feature that should be investigated
the best flywheel blasters so farhave 0 barrel just a shroud to stop fingers getting stuck in flywheels.. or some sort of thing that looks like a barrel but provides no friction to the darts.. while this design will add friction/rebounding to the darts.. which could sadly possibly make this blaster only good for pinching the motors from/copying the motor array set up for another gun ... test must be done! we can not have stock barrels only beacuse they let the guns layout look cooler if they add no aid to performance they must be removed compleatly.
ReplyDeleteWould you be able to fit an 8 battery holder in the inside of the back stock?
ReplyDeleteSo the Rayven CS-18 got a further test today at an indoor game. I can't give you a definitive answer on whether it totally owned or not. *Cough* someone *cough* burned one of the motors out at the beginning of the week and we ended up replacing both. However the replacements weren't much chop and the Rayven would cut out after 6 or 7 shots with an accompanying odour of ozone. Was running it at 11 -12 volts and the ranges were still good. As I say, its hard to be conclusive but that voltage range seems about right - bearing in mind it took a whole afternoon running it at 16 volts to bugger it up. Next on the agenda is to swap the motors out for something that will take more juice. Got some in the States lined up
ReplyDeletePlease share what US side motors you are considering? I am in the US and would like to up the voltage when I get my hands on this gun.
ReplyDeleteLearn physics. Barrels help with springers and air tank based systems because they rely on air pressure contained within the barrel.
ReplyDeleteFlywheels use friction to impart momentum to the darts, so the barrels would never ever improve range (would probably make it worse). Accuracy maybe.
What springer gun has a airtight barrel? i know of nun... only airtight plungers. intersting idea for a mod but would prob be to much presure for the dart and get it stuck.
ReplyDeleteI HAVE NEVER SEEN SUCH COMPLICATED INTERNALS
ReplyDeleteIve noticed that in the Airzone Quickfire belt fed blaster just released... that the pre production image did not have a barrel infront of the flywheel system but in production they added one. this is perhaps some thing to do with a discovery they made about acuracy. etc... I still think in high fire auto mode a barrel can cause issues esspecialy if the barrel is 2 long/badly threaded or moved while fired .. im still suspect about this blaster due to the fact there is no 0 barrel option possible... but its advantage seems to be in the power of its stock motors. ... do you have model numbers etc... I think i will likely get the Airzone or Photom storm for modding... this seems more like a stock gun..
ReplyDeletewhere did you get a hold of it love to mod one of these
ReplyDeletesuppose it should have an `ECS(Electric Clip System )' somewhere
ReplyDeleteIs it lighter or the same weight as a stampede?
ReplyDeleteany chance of nerf coming out with something this compact and bullpup but with stampede based internals??
